pico+25/WK/U

Bild vom pico+25 Ultraschallsensor
watchlist 0

Downloads

Page content as online catalogue

Download Sensor as PDF

Documentation

User manual

CAD Files

SAT STEP IGS IPT PDF

Approvals and certificates

EU Declaration of Conformity UKCA Declaration of Conformity
  • 1 x analogue 0-10 V 1 x analogue 0-10 V
  • 350 mm 350 mm
30 - 350 mm
cylindrical M18 with radially-arranged ultrasonic transducer (90° angular head)
analogue distance measurements
90° angular head
UL Listed

Ultrasonic-Specific

echo propagation time measurement
320 kHz
30 mm
250 mm
350 mm
0.069 mm to 0.10 mm, depending on the analogue window
± 0.15 %
± 1 % (temperature drift internally compensated)

Electrical Data

15 V bis 30 V DC, verpolfest
± 10 %
≤ 40 mA
5-pin M12 initiator plug

outputs

analogue output
voltage: 0-10 V, short-circuit-proof
switchable rising/falling
32 ms
< 300 ms

Inputs

com input
synchronisation input
teach-in input

housing

brass sleeve, nickel-plated, plastic parts, PBT
polyurethane foam, epoxy resin with glass contents
IP 67
-25°C to +70°C
-40°C to +85°C
35 g
15 Nm

Technical Features/Characteristics

yes
com input
Teach-in via com input on pin 5
LCA-2 with LinkControl
yes
yes
1 x LED green: working, 1 x LED yellow: object in the window
90° angular head
UL Listed

Accessories

KST5A-2/M12
KST5A-5/M12
KST5G-2/M12
KST5G-5/M12
BF-18
LCA-2
LCA-2 Koffer
SyncBox1

Matching sensors

prev
next
KST5A-2/M12

KST5A-2/M12

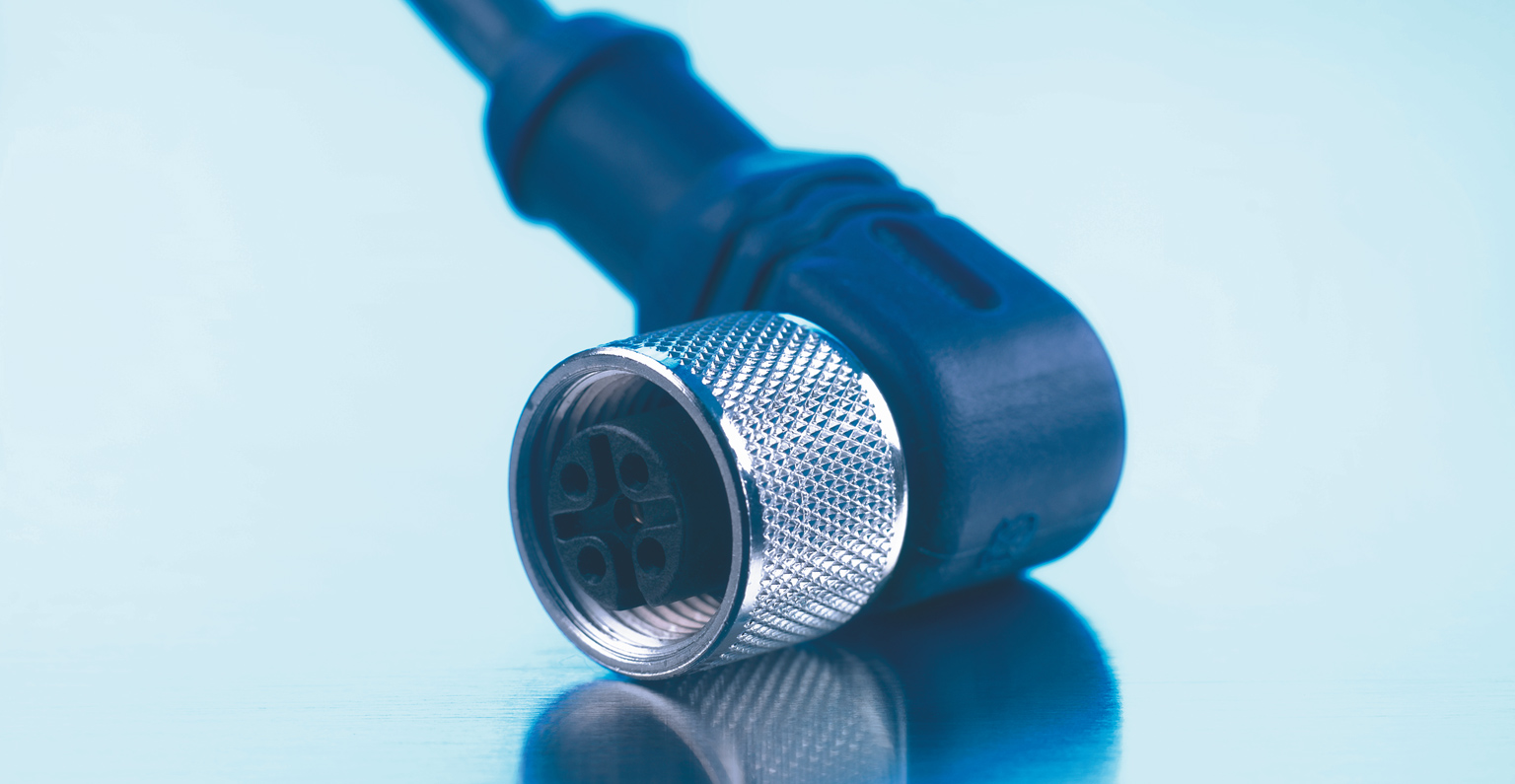

cable, 5 contacts, female angled connector M12, cable length 2 m
KST5A-5/M12

KST5A-5/M12

cable, 5 contacts, female angled connector M12, cable length 5 m
KST5G-2/M12

KST5G-2/M12

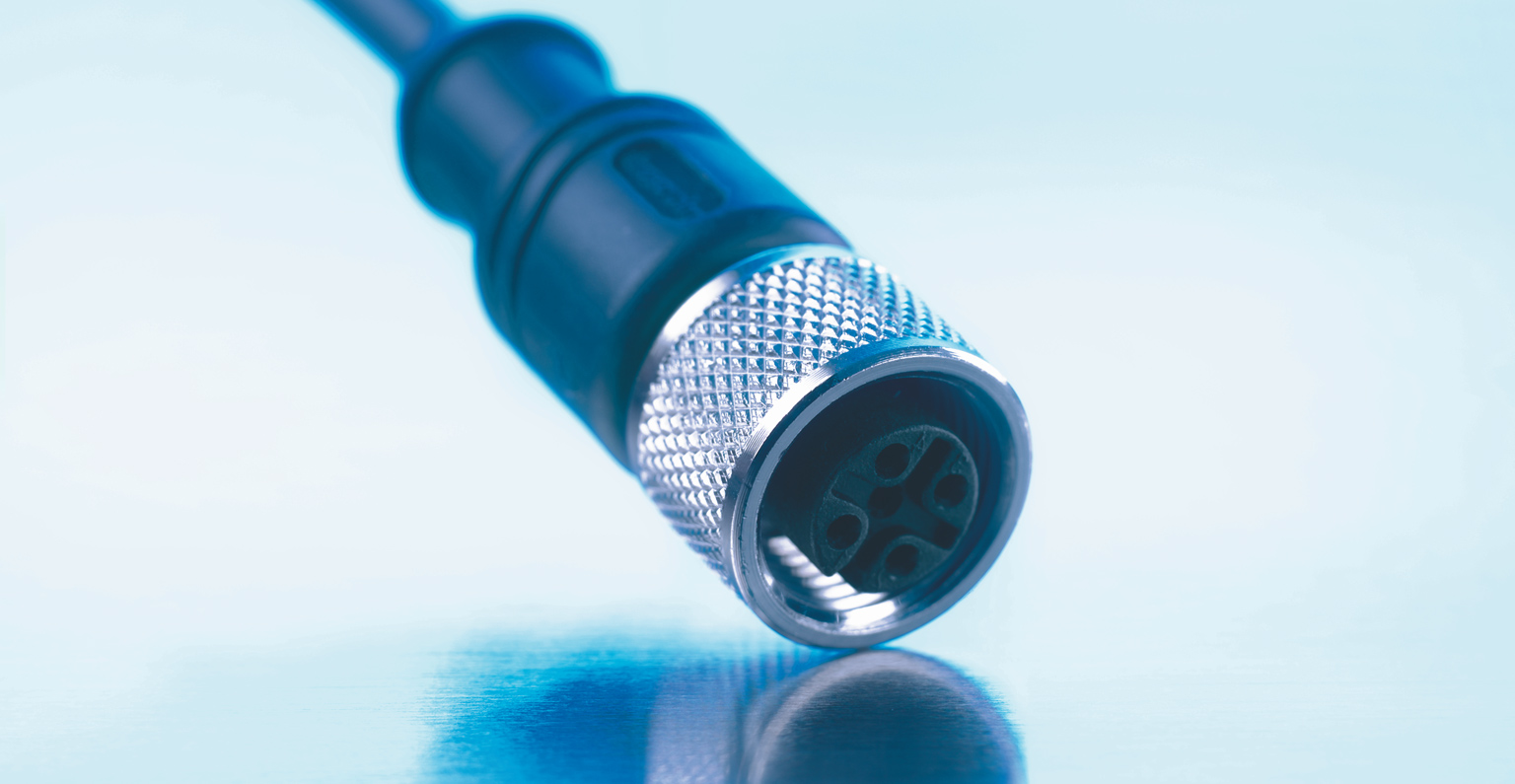

cable, 5 contacts, female cable connector M12, cable length 2 m
KST5G-5/M12

KST5G-5/M12

cable, 5 contacts, female cable connector M12, cable length 5 m
BF-18

BF-18

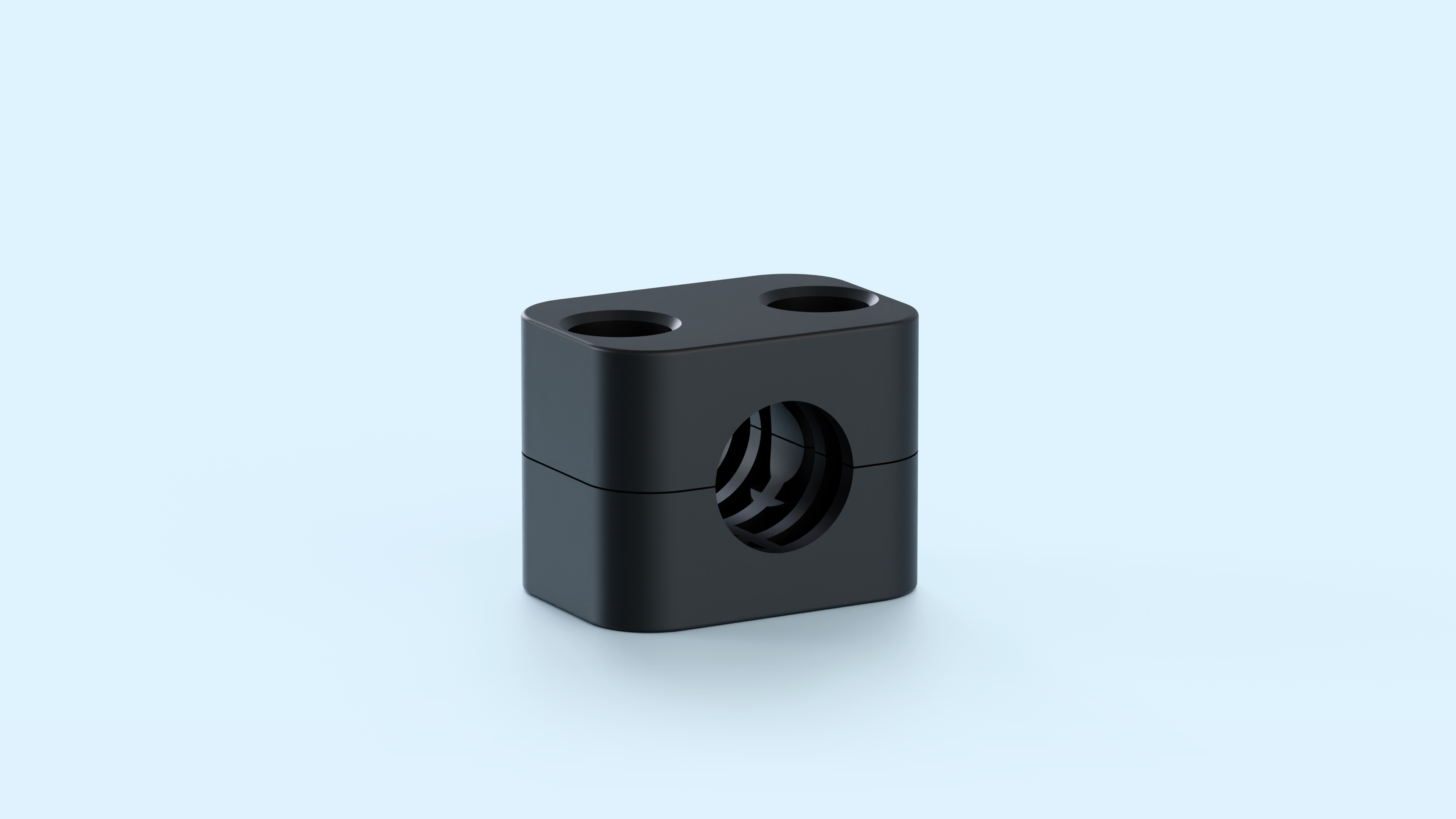

fastening clamp for sensors with M18 threaded sleeve

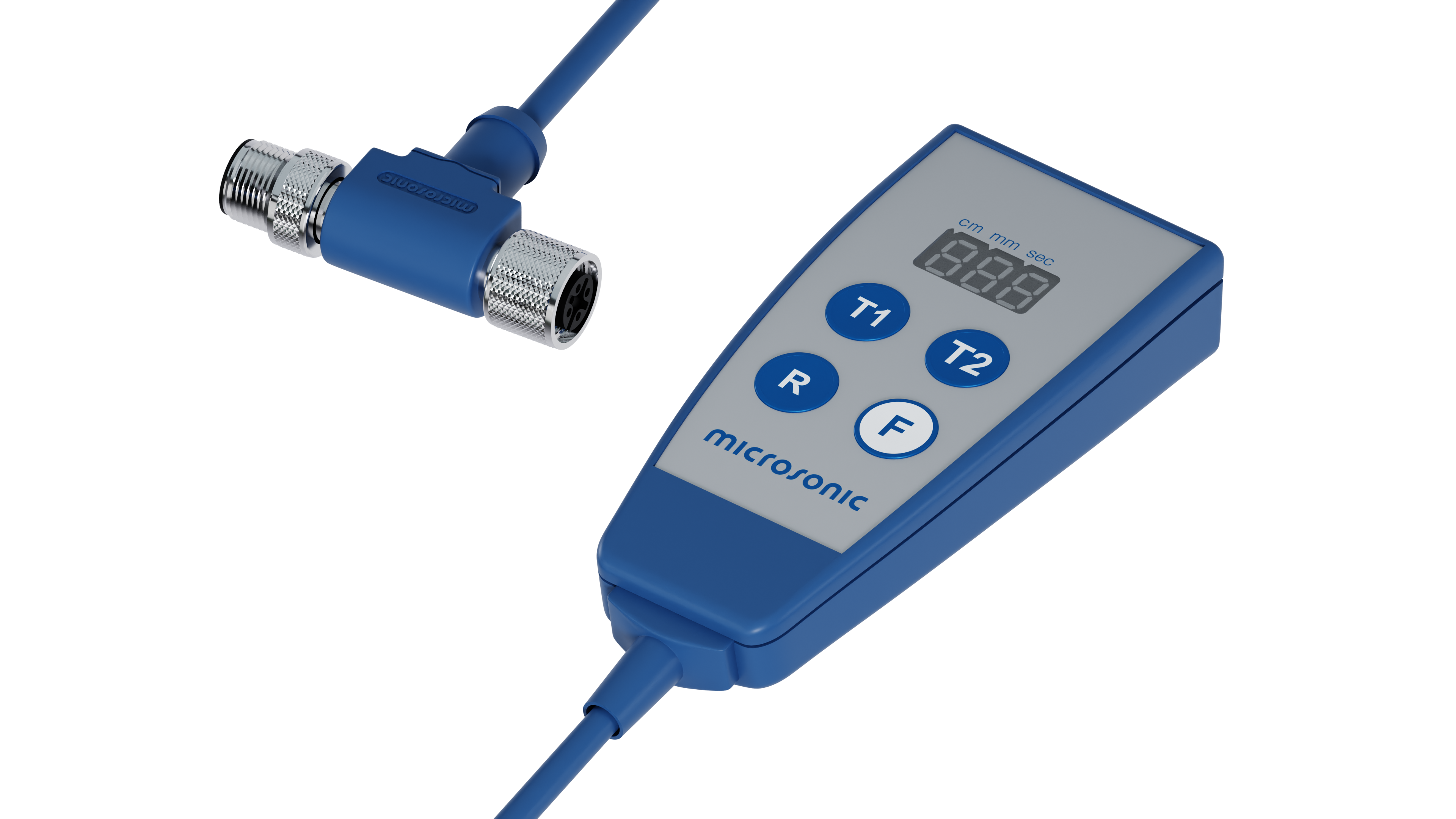

LCA-2

LCA-2

For the convenient setting of a large number of microsonic sensor families. The LinkControl-Adapter LCA-2 can be used to read, copy or write parameters. Additionally, you can connect it with a PC in order to configurate it via LinkControl Software.

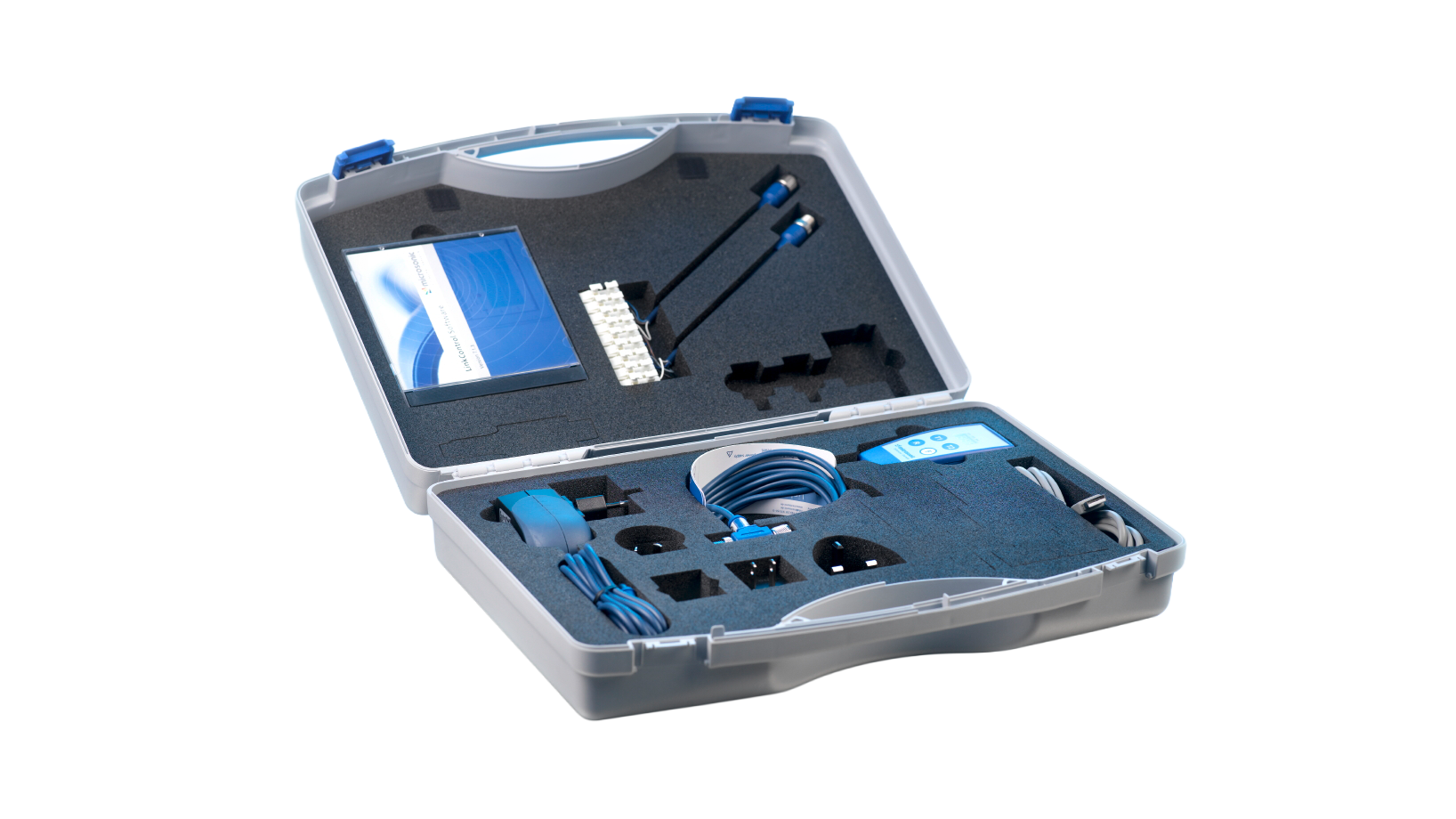

LCA-2 Koffer

LCA-2 Koffer

Set for convenient setting of a number of microsonic sensor families.<br/>Contents:<br/>LCA-2<br/>- Adaptor for sensors with cable connection (lcs) incl. cable clamps<br/>- Adapter for power supply incl. cable clamps<br/>- Power supply 90-240VAC/24VDC, 625 mA, with 2,5 m cable<br/>- four exchangeable AC-plugs for use in Europe, USA, Great Britain and Australia<br/>- USB - cable A-plug to B-plug<br/>- USB stick with LinkControl software<br/>- Manual (German / English)

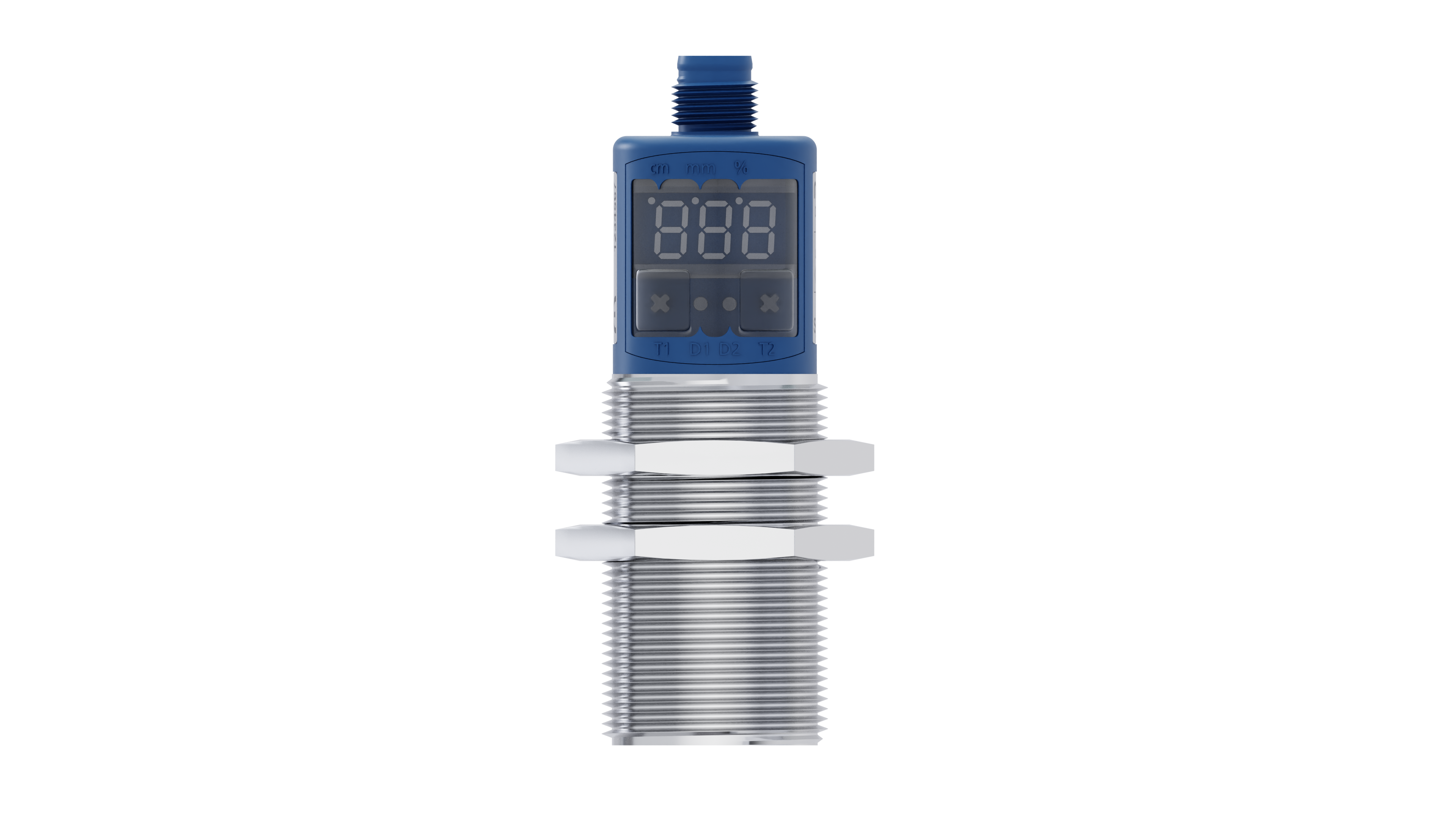

SyncBox1

SyncBox1

For the external synchronization of more than 10 mic+, mic, crm+, cube and lcs+ sensors. The SyncBox1 allows synchronization of up to 160 sensors.
